Developers¶

Docker local build¶

From time to time, check that the base Miniforge3 image is up to date in the Dockerfile:

FROM condaforge/miniforge3:26.5.3-0

This base Miniconda3 image specified in the Dockerfile is pulled from a remote registry.

If you update the Dockerfile, check that the local build completes without errors:

docker build .

or use the compose equivalent:

BUILDKIT_PROGRESS=plain \
    docker compose -f docker-compose.yml \
    -f docker-compose.build.yml build

Test with:

docker compose -f docker-compose.yml -f docker-compose.build.yml up -d

Then push changes to GitLab, which will recreate the registry image based on the new Dockerfile.

To manually build the Mapnik image, optionally add a specific APP_VERSION to your .env, then:

docker compose -f docker-compose.yml -f docker-compose.mapnik.yml build \
        --no-cache --progress=plain \
    && docker compose -f docker-compose.yml -f docker-compose.mapnik.yml up -d

---

Versioning and release cycle¶

Carto-Lab Docker uses a Trunk-based release flow:

• Every push to master-latest automatically builds and updates the :dev (bleeding-edge) Docker image.
• To create a stable release and update the :latest and :vX.Y.Z images, you must generate a Git tag.

To manually bump a new semantic version and trigger the Release CI pipeline:

export GL_TOKEN=... # your gitlab access token
semantic-release -vv --noop version
semantic-release -vv --noop publish

Remove -vv --noop afterwards to make a public release. semantic-release will automatically analyze your commit messages, bump the version in .version, commit the changes, and push a Git tag (e.g., v1.2.0) to GitLab.

GitLab CI will detect this new tag and automatically build the immutable release images.

After the pipeline finishes, manually refresh the two hardcoded versions in the repo to break the GitHub caches:

# Get the new version string from the .version file
version_var=$(sed -n "s#__version__ =\s*'\(.*\)'#\1#p" .version)

# Update the version badge in README.md to break GitHub's image cache
sed -i -E "s|(https://cartolab\.fdz\.ioer\.info/version\.svg)(\?v=[0-9\.]+)?|\1?v=${version_var}|" README.md

# Update CITATION.cff with the latest version number
sed -i -E "s|^(version:\s*)([0-9]+\.[0-9]+\.[0-9]+)|\1${version_var}|" CITATION.cff

# Commit the changes
git add CITATION.cff README.md && \
    git commit -m "chore: update version badge and CITATION.cff to ${version_var}" && \
    git push

If no release has been made for a long time, it is possible to manually update the changelog to include unpublished changes:

semantic-release changelog

# Append the (:dev tag) hint to the Unreleased header
sed -i 's/^## Unreleased$/## Unreleased (:dev tag)/' CHANGELOG.md

git add CHANGELOG.md && \
    git commit -m "chore: update CHANGELOG.md" && \
    git push

---

Manually Building and Distributing Flavors¶

While the core images (:latest, :vX.Y.Z) are built automatically via CI/CD, our flavor images like :qgis or :grass are omitted to save runner resources. If you need to deploy a flavor to multiple instances (e.g., deploying QGIS to 10 different users), you can build it once locally, tag it with the base version, and push it to the registry using a Deploy Token.

1. Authenticate with the Registry (Deploy Tokens)

To push or pull from a private GitLab Container Registry, HTTP-based authentication is required. The most secure method is a GitLab Deploy Token.

1. Go to your GitLab project: Settings -> Repository.
2. Expand the Deploy tokens section and click Add token.
3. Name: Carto-Lab-Builder (or similar).
4. Scopes: - Check write_registry (required for pushing the image).
   - Check read_registry (required for pulling the image on target VMs).
5. Click Create deploy token and copy the username and password immediately.

Log in to the registry on your local build machine:

echo "YOUR_TOKEN_PASSWORD" | \
    docker login gcr.hrz.tu-chemnitz.de -u "YOUR_TOKEN_USERNAME" --password-stdin

2. Build, Tag, and Push the Flavor

Set your environment variables to match the target flavor and the base image version you are building upon. In this example, we build the QGIS flavor based on v1.1.0:

# Define targets
export BASE_VERSION=v1.1.0
export FLAVOR=qgis
export REGISTRY=gcr.hrz.tu-chemnitz.de/ioer/fdz/carto-lab-docker

# 1. Build the flavor locally using layered compose files
docker compose -f docker-compose.yml -f docker-compose.${FLAVOR}.yml build

# 2. Tag the resulting image with the combined flavor and version
docker tag quay.io/ioer-fdz/carto-lab-docker:${FLAVOR} ${REGISTRY}:${FLAVOR}_${BASE_VERSION}

# 3. Push to the registry
docker push ${REGISTRY}:${FLAVOR}_${BASE_VERSION}

3. Deploying on Target VMs

Once the image is in the registry, deploying it to target instances is seamless:

1. On the target VM, authenticate Docker using a Deploy Token (read_registry scope).
2. Update the .env file on the target VM to use your flavor and chained compose files:

# In .env
TAG=qgis_v1.1.0
# Chain base compose with the flavor and optional local override:
COMPOSE_FILE=docker-compose.yml:docker-compose.qgis.yml:docker-compose.override.yml
COMPOSE_PATH_SEPARATOR=:

3. Pull and recreate the container:

docker compose pull
docker compose up -d

---

Reverse Proxy Setup (Dedicated Web Domain)¶

When exposing Carto-Lab on a public domain, configure JUPYTER_WEBURL and JUPYTER_WEBPORT in .env:

JUPYTER_WEBURL=https://jupyterlab.example.org
JUPYTER_WEBPORT=8888

Option A: Nginx (Recommended)¶

Nginx handles WebSocket upgrades and large file uploads with minimal overhead:

map $http_upgrade $connection_upgrade {
    default upgrade;
    ''      close;
}

server {
    listen 80;
    server_name jupyterlab.example.org;

    client_max_body_size 100M;

    location / {
        proxy_pass http://127.0.0.1:8888;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;

        # WebSocket support
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;

        proxy_buffering off;
        proxy_read_timeout 86400s;
    }
}

Option B: Apache¶

Enable the required Apache modules (proxy, proxy_http, proxy_wstunnel, rewrite):

<VirtualHost *:80>
    ServerName jupyterlab.example.org

    RewriteEngine On
    RewriteCond %{HTTP:Connection} Upgrade [NC]
    RewriteCond %{HTTP:Upgrade} websocket [NC]
    RewriteRule /(.*) ws://localhost:8888/$1 [P,L]

    ProxyPass           /api/kernels/  ws://localhost:8888/api/kernels/
    ProxyPassReverse    /api/kernels/  ws://localhost:8888/api/kernels/
    ProxyPass           /              http://localhost:8888/
    ProxyPassReverse    /              http://localhost:8888/
</VirtualHost>

---

Hosting a Persistent Instance with a Daily Reset¶

Jupyter servers can be left running persistently by setting JUPYTER_AUTOSHUTDOWN_TIMEOUT=0 in .env (or docker-compose.override.yml):

# .env
JUPYTER_AUTOSHUTDOWN_TIMEOUT=0

To reset containers daily (clearing temporary memory and dangling processes), add a cron script under /etc/cron.daily/reset_jupyter:

sudo nano /etc/cron.daily/reset_jupyter

#!/bin/sh
# Configuration
USER="xxx"  # Replace with the unprivileged service user
WORK_DIR="/srv/$USER/jupyterlab"

# Abort if user is marked as disabled/on-hold
if [ -f "/srv/$USER/.disabled" ]; then
    echo "User $USER is on hold. Skipping daily reset."
    exit 0
fi

# Re-run as the service user if invoked as root
if [ "$(id -u)" -eq 0 ]; then
    exec sudo -H -u "$USER" "$0" "$@"
    echo "This is never reached."
fi

# Reset containers
cd "$WORK_DIR" || exit 1
docker compose down
docker compose up -d

# Prune dangling objects only if containers are healthy
if docker compose ps --filter "status=running" --quiet | grep -q .; then
    docker system prune -f
fi

Make the script executable:

sudo chmod 755 /etc/cron.daily/reset_jupyter

---

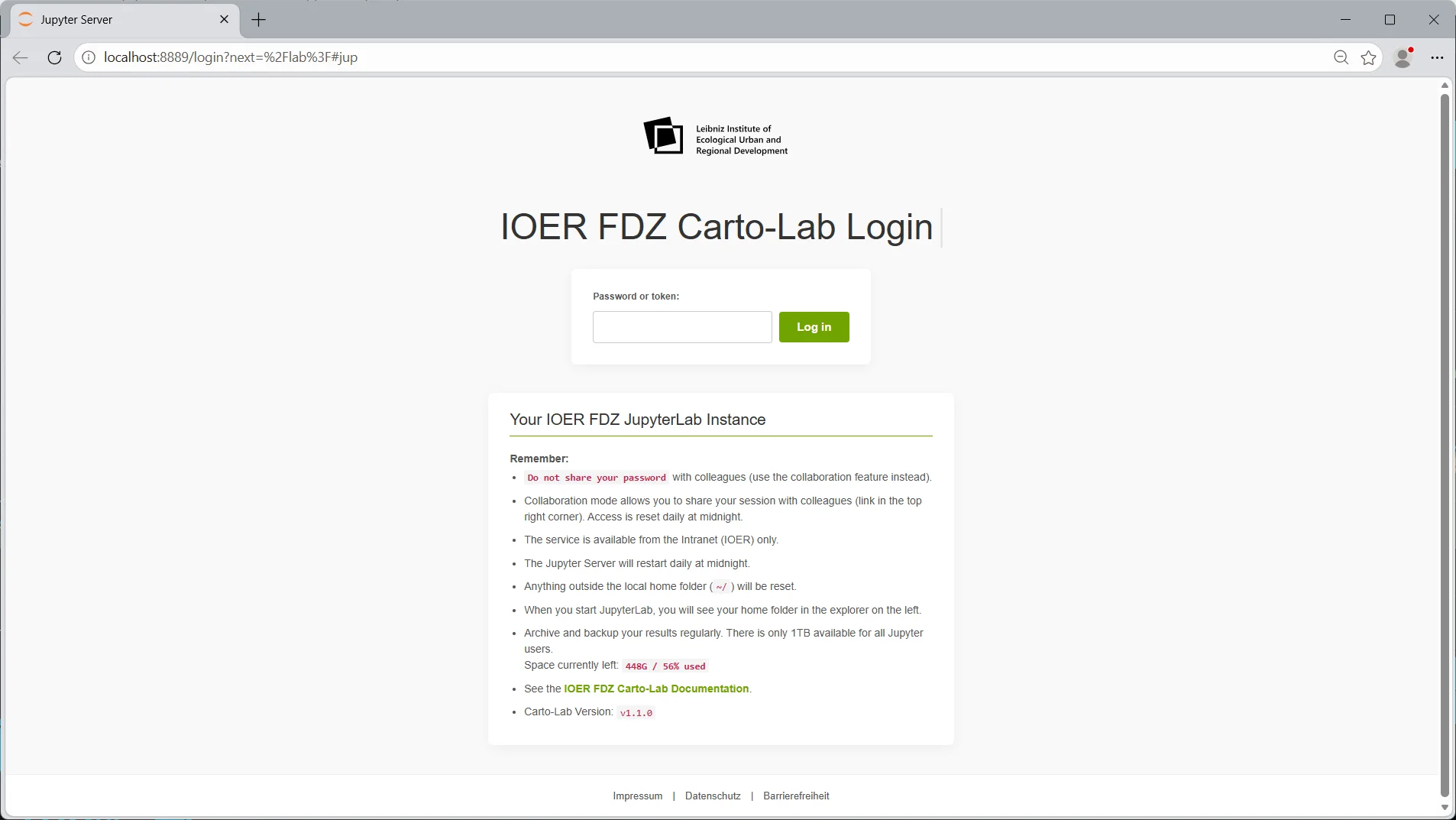

Overriding the Login Page¶

To customize the welcome screen (e.g. adding custom notices or branding), mount a custom login.html into the container's template directory:

1. Extract or create a custom login.html: You can use our template from resources/login.html or extract the default template:

docker cp lbsn-jupyterlab:/etc/jupyter/templates/login.html ./login.html

2. Customize login.html: Add any custom HTML or announcements below the <form> block:

</form>
<div style="text-align:left">
   <br><br>
   <h2>FDZ Carto-Lab Notice</h2>
   <ul>
      <li>Collaboration mode is enabled.</li>
      <li>Nightly container resets occur at 04:00 AM.</li>
      <li>Persistent files must be stored in <code>~/work</code>.</li>
   </ul>
</div>

3. Mount via docker-compose.override.yml: Add the read-only bind mount to docker-compose.override.yml:

# docker-compose.override.yml
services:
  jupyterlab:
    volumes:
      - ./login.html:/etc/jupyter/templates/login.html:ro

4. Recreate the container: bash docker compose up -d

---

Security Philosophy: Root in the Container, Rootless on the Host¶

Carto-Lab Docker's security model relies on a strict separation between container privileges and host operating system privileges:

• Inside the container, the Jupyter server runs as root: This provides researchers with full flexibility to interactively install system packages (apt) or Python packages (conda, pip) without permission errors.
• On the host machine, the Docker daemon runs in rootless user namespaces: By running Docker inside an unprivileged user account (subuid/subgid), container processes are mapped to high unprivileged UIDs on the host (e.g. UID 100000+). Even if code achieves full root execution inside the container, it cannot access the host filesystem, escape namespaces, or affect other users' containers.

For setup details, see the official Docker Rootless documentation or our Ansible deployment playbooks.
